pyghidra-mcp Meets Ghidra GUI: Drive Project-Wide RE with Local AI

TL;DR pyghidra-mcp v0.2.0 introduces a --gui mode. The same headless pyghidra-mcp server that ships an entire Ghidra project to an LLM can now drive a live Ghidra CodeBrowser window. In this post, I drive an LLM session with OpenWebUI (local Gemma4) against D-Link DNS-320L firmware, watching the agent rename functions, write plate comments, and pivot across two binaries to fully annotate the CVE-2024-3273 RCE chain end to end. Every edit lands live in the listing and shows up in Ghidra’s undo history while the session is alive.

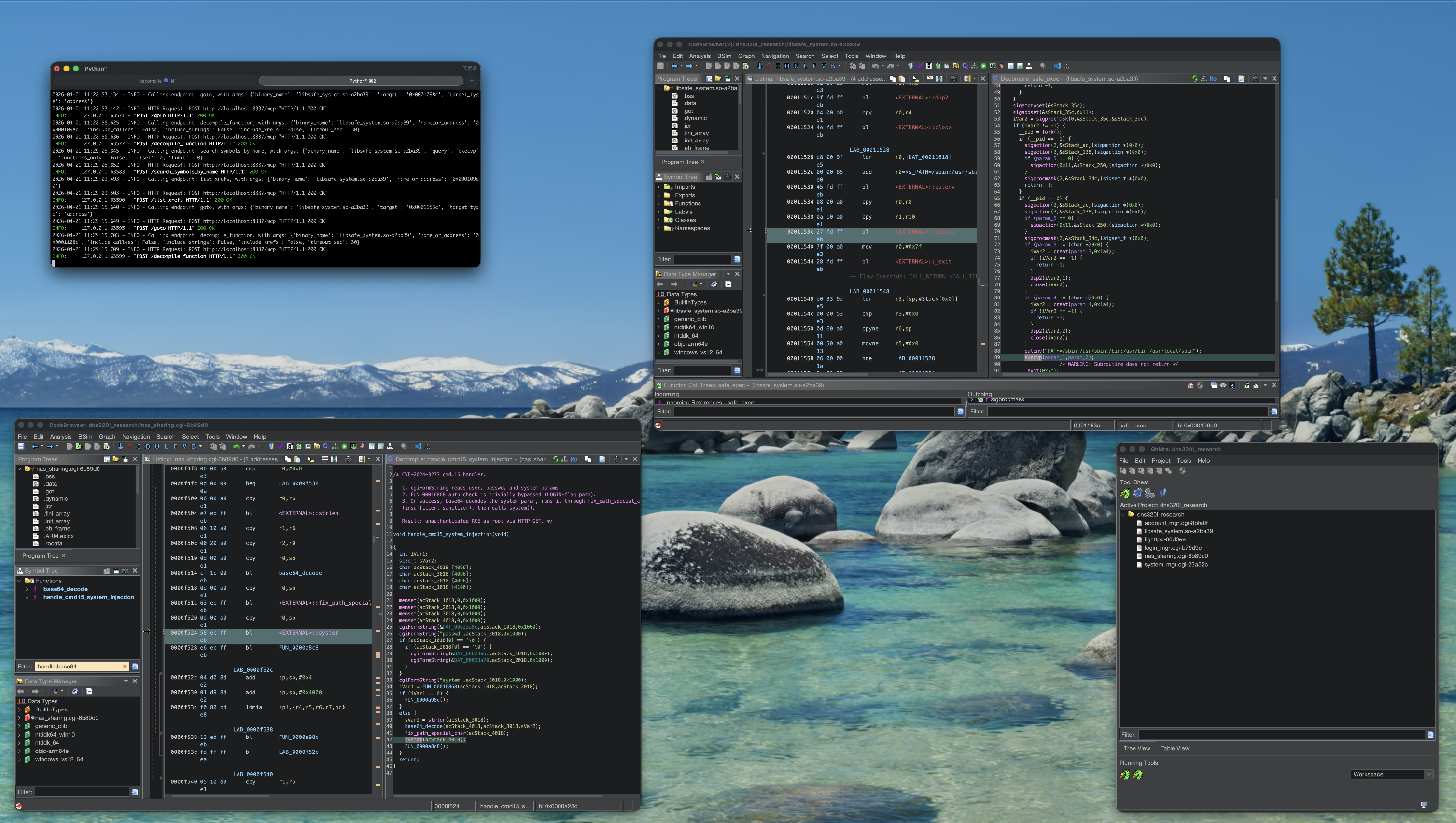

OpenWebUI on the left, real Ghidra CodeBrowser on the right. Same project, same program, live edits.

When the first pyghidra-mcp post shipped back in August, the pitch was project-wide, multi-binary analysis from a headless server. That part is still the core of the tool. What was missing was a way for the human reverse engineer to see what the agent was doing without paging through a wall of tool-call JSON.

This post is about filling that gap, and about what multi-binary reverse engineering looks like when the agent and the human share one window.

The Problem with Headless-Only

Headless works great for CI, Docker, and one-shot “analyze this whole firmware dump” scripts. It is the wrong fit when I am actively reversing something and I want to read the listing, follow an xref, set a bookmark, or sanity-check that the agent renamed the thing I thought it did. Before GUI mode, the project file was a black box until I closed the server and reopened it manually. By then the session context was gone, including any chance to catch the agent in the act when it sounded confident and was wrong.

The fix is straightforward in retrospect. I had filed GUI mode away as impossible because Ghidra’s project lock means two separate JVMs cannot open the same .gpr at the same time. Walking through the Ghidra source turned that into the obvious answer: do not run them as separate processes. Run pyghidra-mcp and ghidra.GhidraRun inside the same JVM, share one project, share one set of Program objects, and every MCP write lands in the GUI.

What I Wanted from a Ghidra MCP

I wanted GUI mode because I had already seen what it felt like from the other side. LaurieWired’s GhidraMCP was the first project I saw that put an LLM inside Ghidra’s CodeBrowser as a plugin, and watching the listing update under tool calls stuck with me. pyghidra-mcp came at the same problem from the other end, headless-first for project-wide visibility across many binaries, scriptable batch analysis, and Docker-friendly CI.

What Shipped in v0.2.0

pyghidra-mcp --gui starts the server and launches Ghidra’s CodeBrowser against the same project the MCP tools are operating on. They share the open Program objects, so any write performed through an MCP tool lands in the GUI instantly.

$ uvx pyghidra-mcp --gui --transport http --port 8337 \
    --project-path /path/to/dns320l_research.gpr

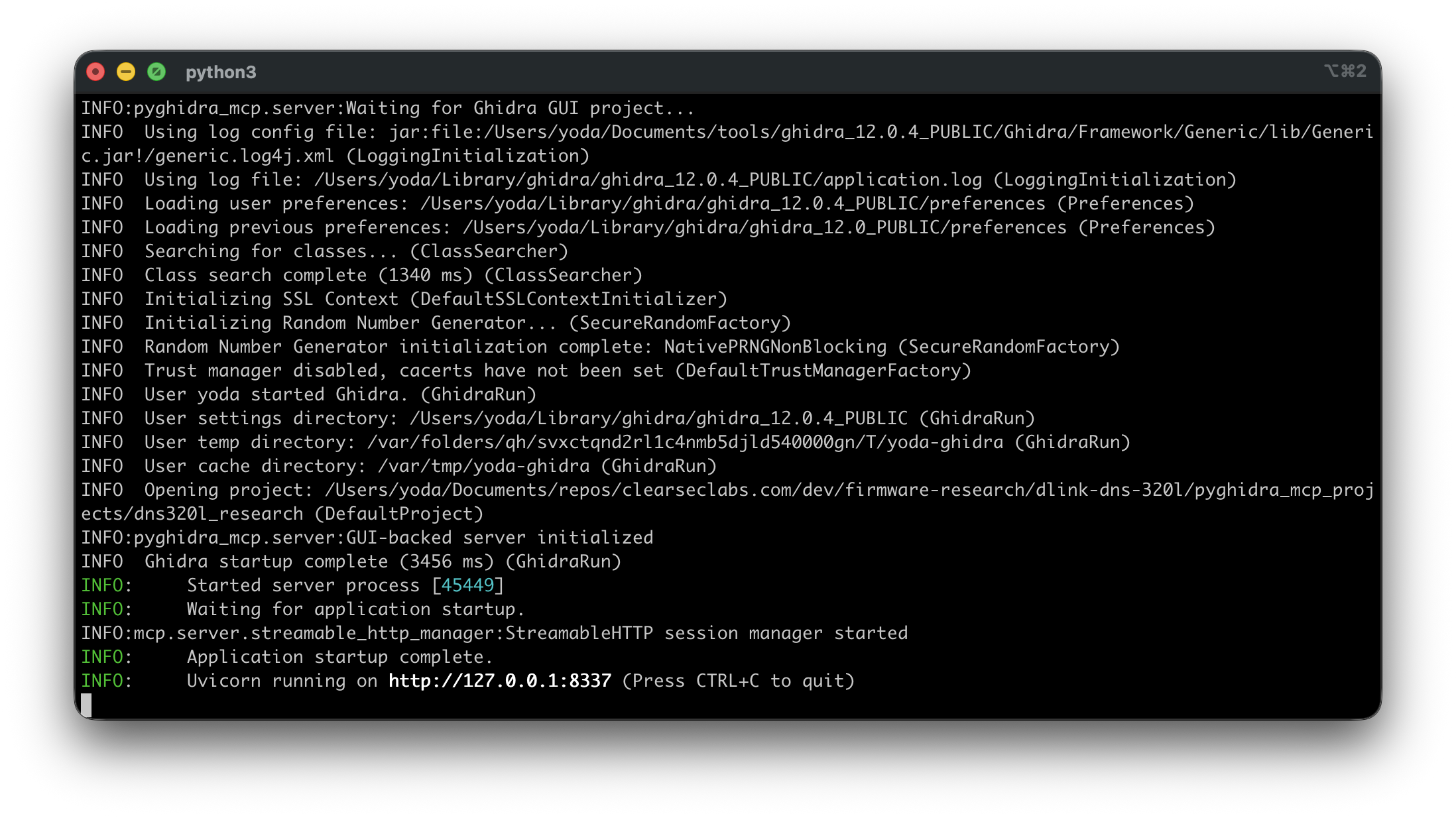

pyghidra-mcp --gui starting up: the server logs GUI-backed server initialized and the CodeBrowser launches against the project.

On the tool side, GUI mode adds a handful of new MCP tools that only make sense once you have a window to drive:

• open_program_in_gui opens a binary in CodeBrowser
• set_current_program switches the active program when more than one is loaded
• goto scrolls the listing to a function name or hex address
• rename_function, set_comment, rename_variable, set_function_prototype, set_variable_type perform writes that land live in the GUI
• import_binary adds a binary to the project from a file path

GUI mode requires --transport http. Ghidra captures stdout and stderr for its own logging the moment the CodeBrowser comes up, so the MCP server has to speak over a socket rather than fighting Ghidra for stdio. Stdio is still the default for headless workflows.

The Setup: Local Agent, Local GUI

Three processes, three ports:

# pyghidra-mcp with GUI
$ uvx pyghidra-mcp --gui --transport http --port 8337 \
    --project-path /path/to/dns320l_research.gpr

# MCPO fronts the streamable-http MCP as OpenAPI
$ uvx mcpo --port 8200 --server-type streamable-http -- http://localhost:8337/mcp

# OpenWebUI (already running) at http://localhost:9099/, configured with the
# OpenAPI tools panel pointed at http://localhost:8200

Model: google/gemma-4-31b-it, running locally. No API keys, no cloud calls, the agent and the GUI both sit on my laptop.

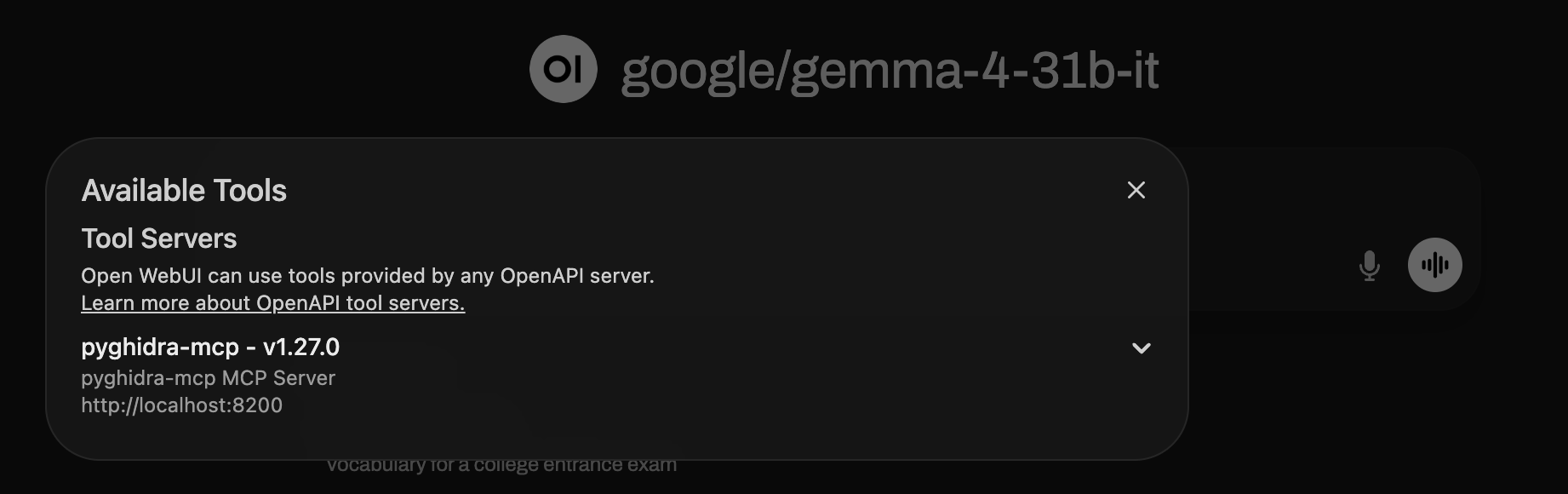

OpenWebUI’s Tools panel sees pyghidra-mcp as an OpenAPI tool server at http://localhost:8200.

The Target: CVE-2024-3273 in the DNS-320L Firmware

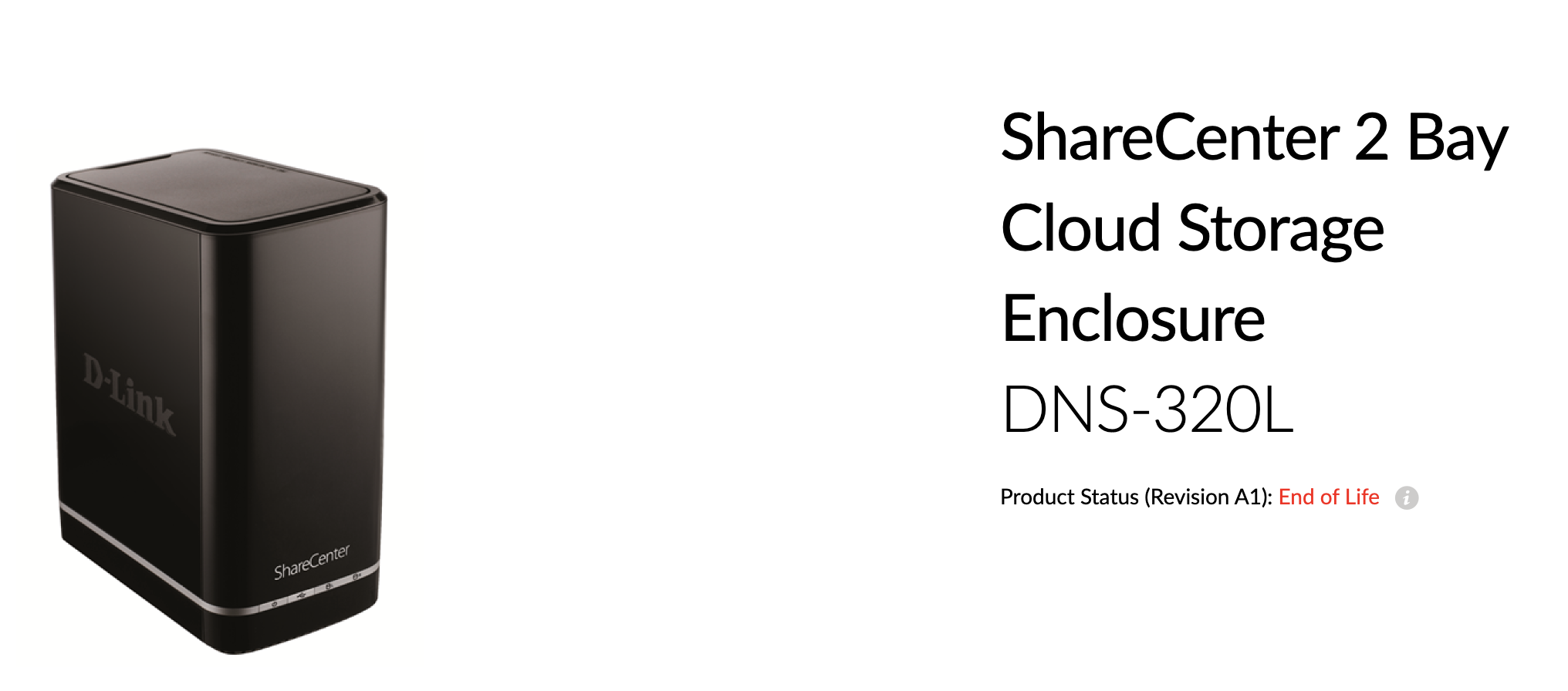

D-Link’s own product page for the DNS-320L, marked End of Life.

D-Link’s DNS-320L is end of life. The vendor classified the affected NAS line as EOL/EOS and declined to patch CVE-2024-3273, recommending users “retire and replace” instead. Censys clocked 92,000+ exposed devices at the time of disclosure. Two years on the count has dropped sharply (Shodan and ZoomEye now show hundreds, not tens of thousands), but the bug never got patched, so any unit still online is still vulnerable. The legacy firmware archive still serves the vulnerable image, so anyone can download the same binaries this post analyzes. The device is a NAS, which means it ships dozens of CGI binaries, a web stack, and a pile of shared libraries. Perfect for project-wide analysis.

The bug itself is well documented by netsecfish’s advisory: unauthenticated RCE in nas_sharing.cgi via a Base64-encoded shell payload in the system parameter when cmd=15. The chain lives in one function. The auth is bypassed because the messagebus account is created at boot with an empty password and the blocklist does not include it. system() is called directly on attacker-controlled bytes after a “sanitizer” that turns out not to sanitize (we will get there).

I knew the bug was in nas_sharing.cgi:FUN_0000f43c going in. The follow-up post in this series walks through how an unprimed local model finds it from scratch. Here, the goal is not the discovery, it is the workflow: drive the entire chase from chat, watch the GUI keep up, and see how a human in the loop catches the agent when it slips.

The project starts with six binaries pre-imported: account_mgr.cgi, libsafe_system.so, system_mgr.cgi, login_mgr.cgi, lighttpd, nas_sharing.cgi. (Spoiler: those are not the right six. We will fix it.)

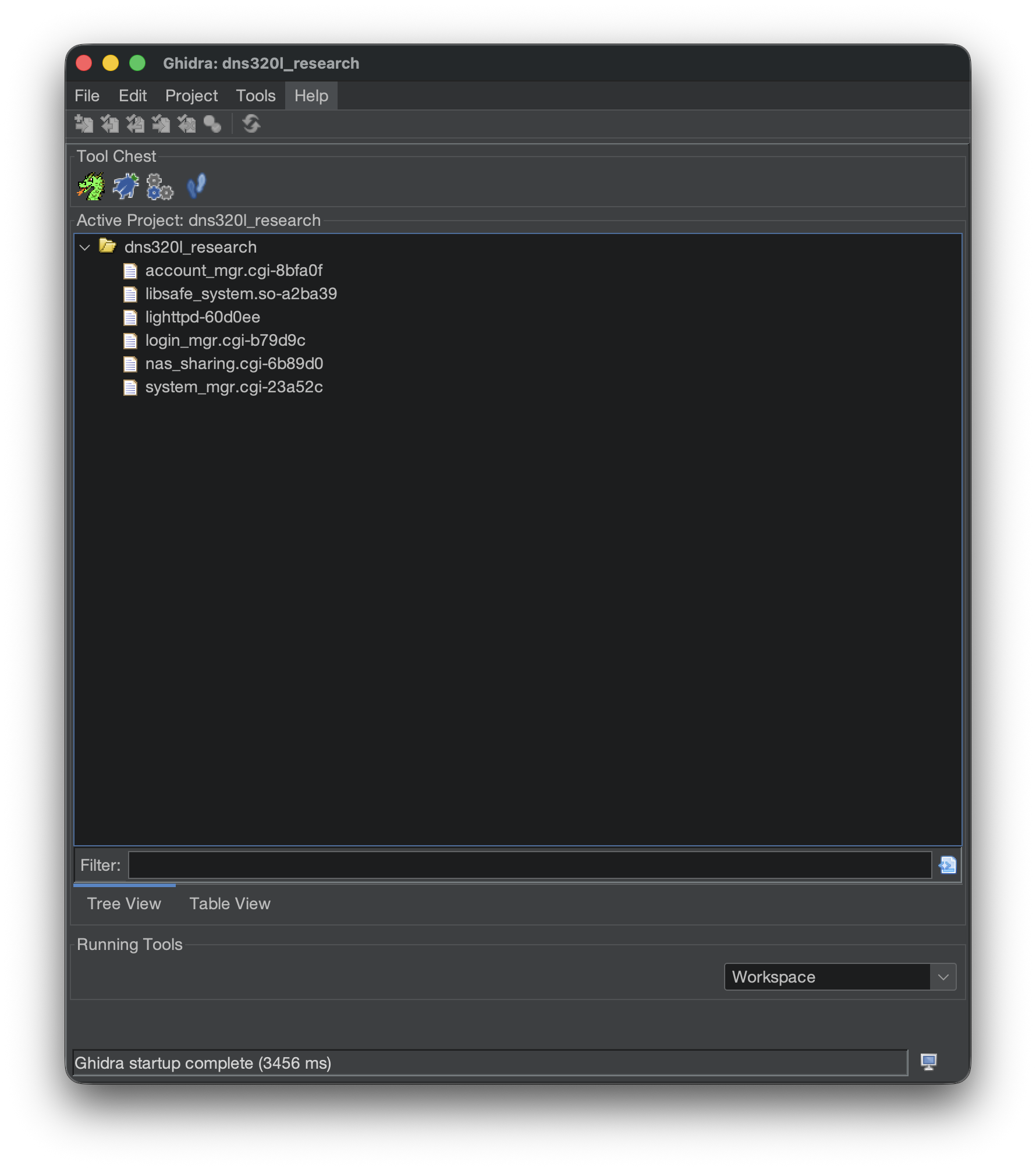

Project window after startup with six binaries staged, none of them the library nas_sharing.cgi actually links against for “sanitization.”

The Prompts

Each section below captures my exact prompts and the response from Gemma4 31b.

1. Orient

List the binaries in this Ghidra project.

A warm-up. Gemma calls list_project_binaries and returns the six. This proves that pyghidra-mcp is setup properly and ready to work.

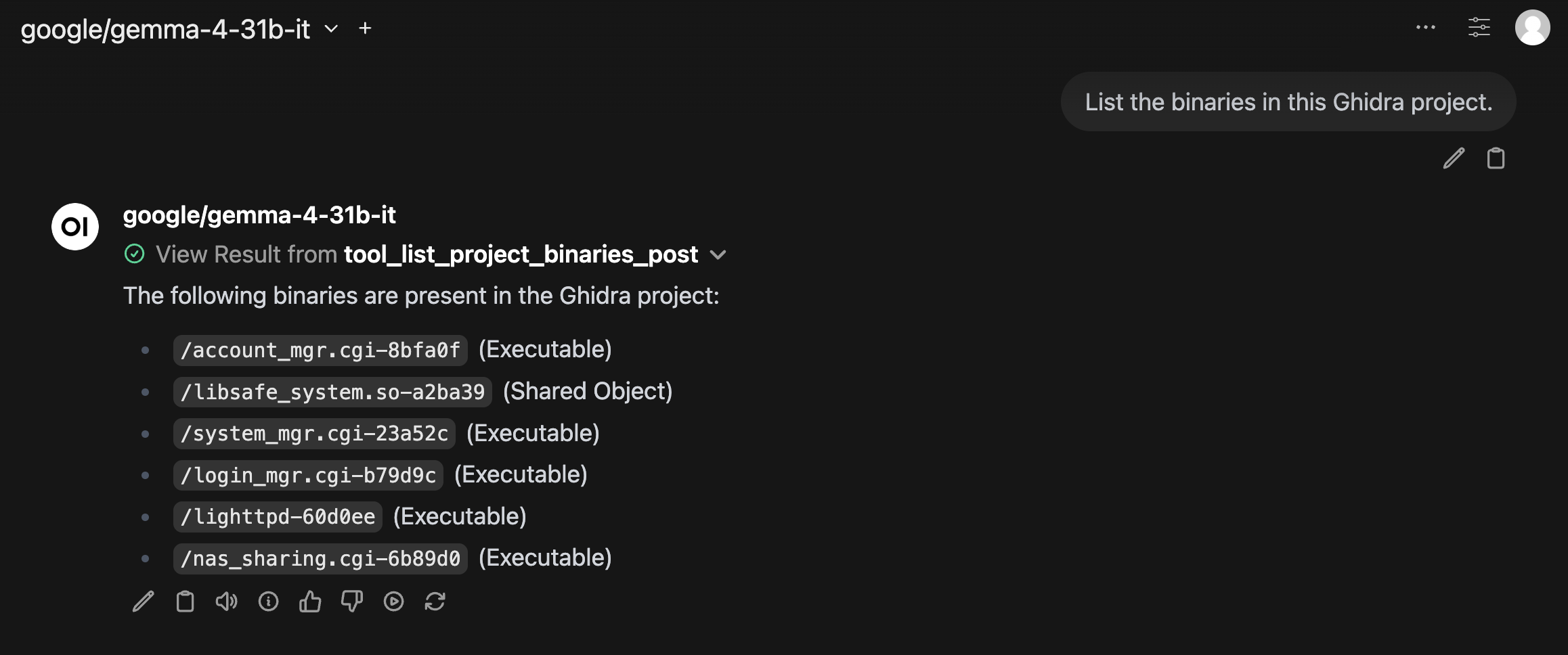

OpenWebUI showing the tool call and Gemma’s summary.

2. Open and Explore the Suspect Function

Open nas_sharing.cgi in the Ghidra GUI, navigate to FUN_0000f43c, and explore it. Try to understand what the function does.

Gemma chains open_program_in_gui → goto → three decompile_function calls → three read_bytes calls.

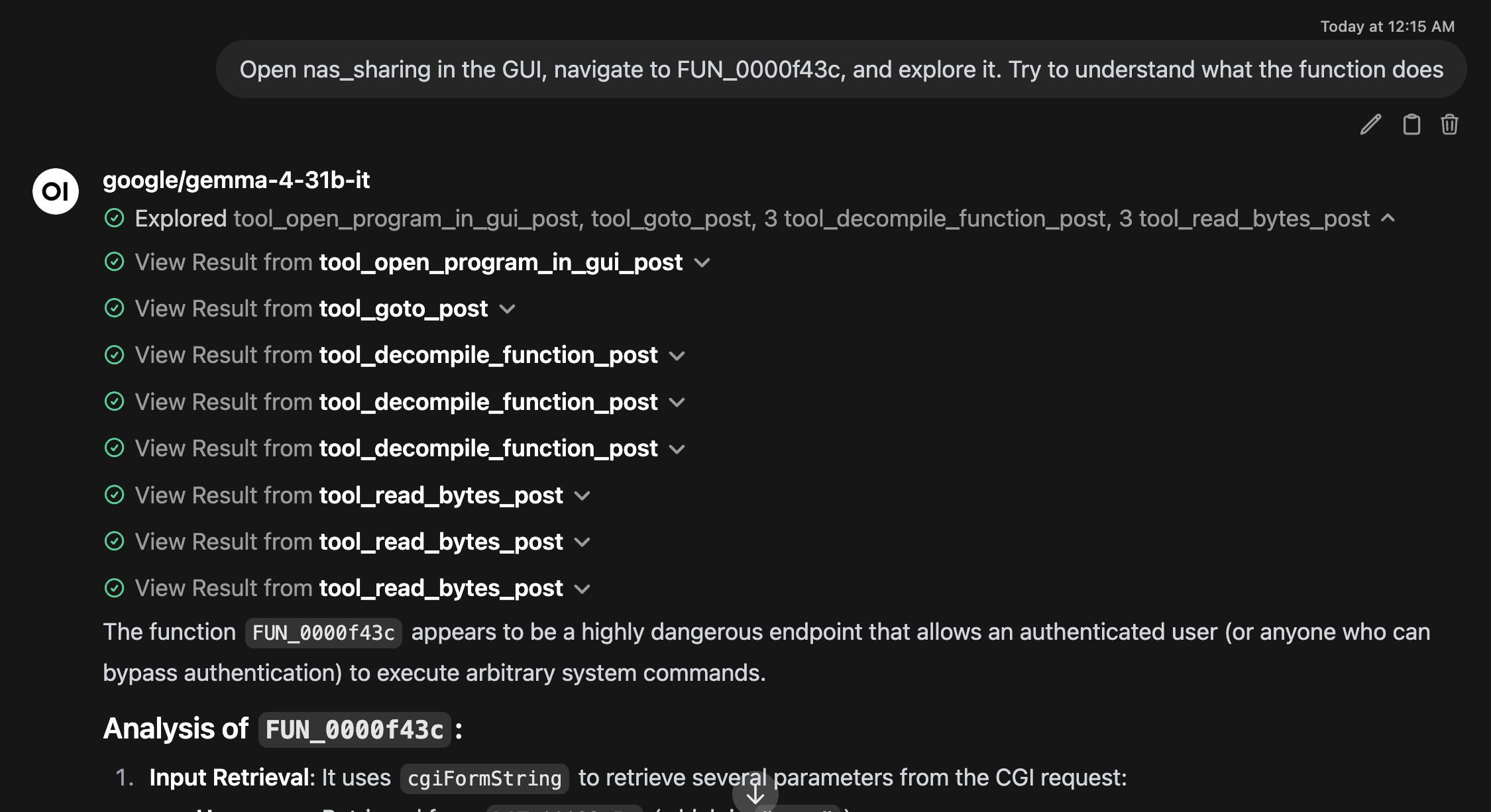

OpenWebUI logs the chain: open_program_in_gui, goto, three decompile_function calls, three read_bytes.

She walks the function in chat, naming the inputs, the auth flow, and the command-execution mechanism:

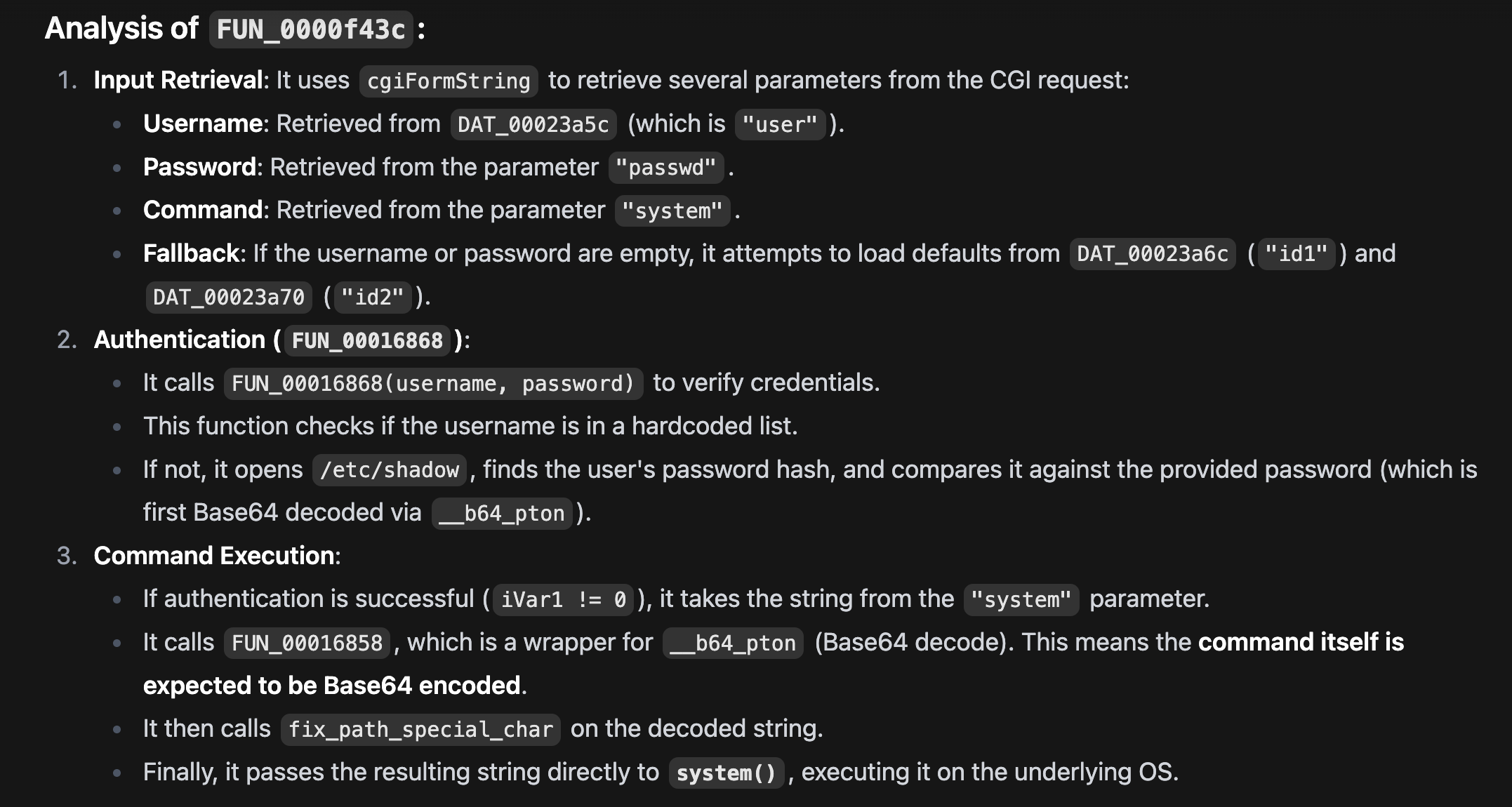

Input retrieval, authentication, and command execution, broken out one at a time.

Then the verdict:

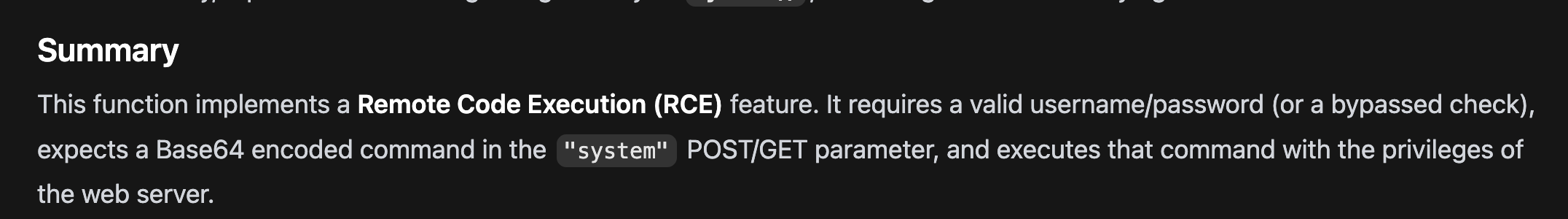

Gemma’s verdict at the end of prompt 2.

“This function implements a Remote Code Execution (RCE) feature. It requires a valid username/password (or a bypassed check), expects a Base64 encoded command in the system POST/GET parameter, and executes that command with the privileges of the web server.”

A CodeBrowser is now open on nas_sharing.cgi, scrolled to FUN_0000f43c.

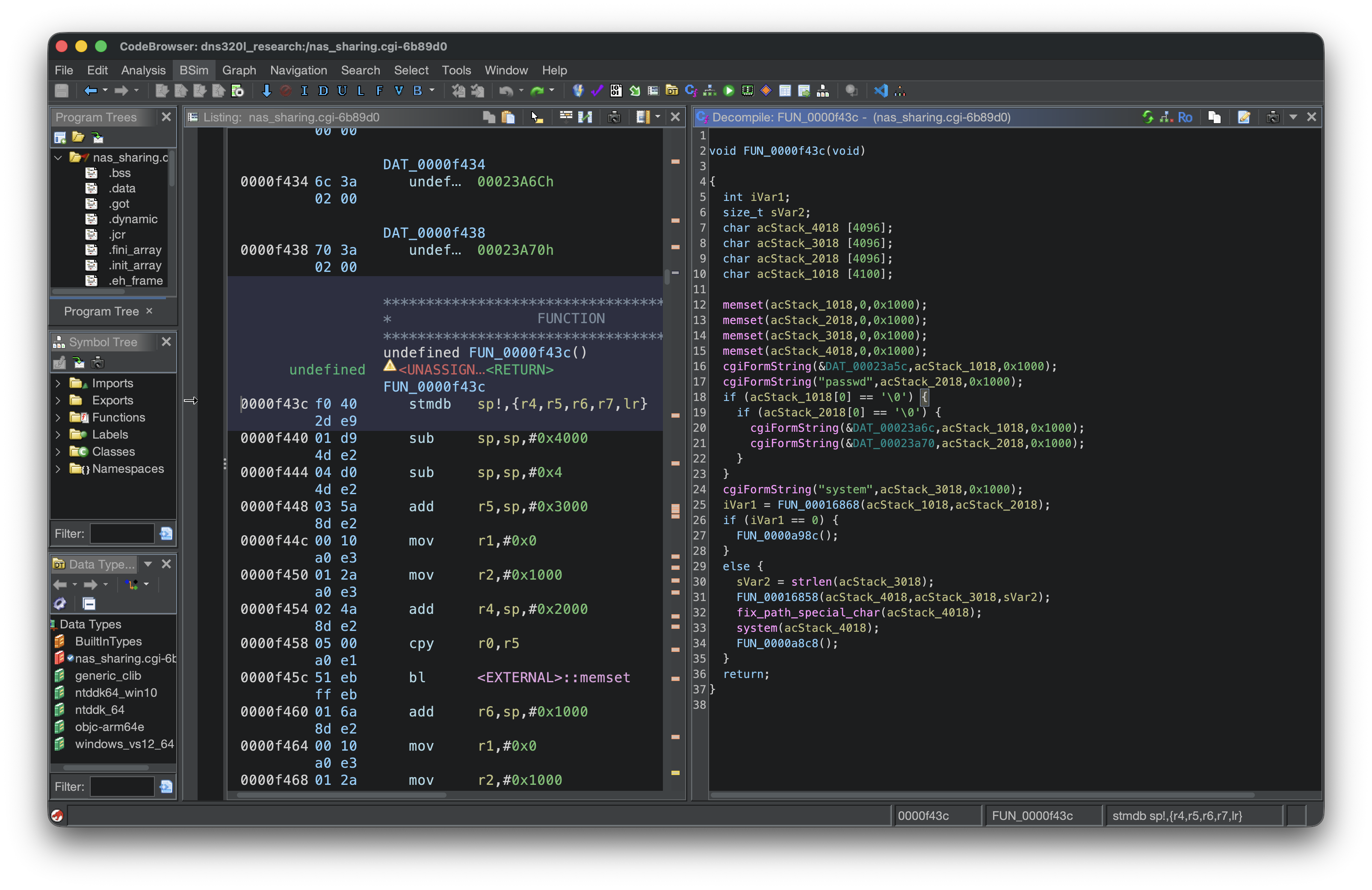

CodeBrowser landed on nas_sharing.cgi:FUN_0000f43c, before any renames.

Worth calling out that the actual analysis happens in MCP tool calls (decompile, read_bytes), not in the GUI. The CodeBrowser is just where the result lands.

3. Rename to Reflect Behavior

Based on what you found, rename FUN_0000f43c to a name that reflects its behavior, confirm the rename worked.

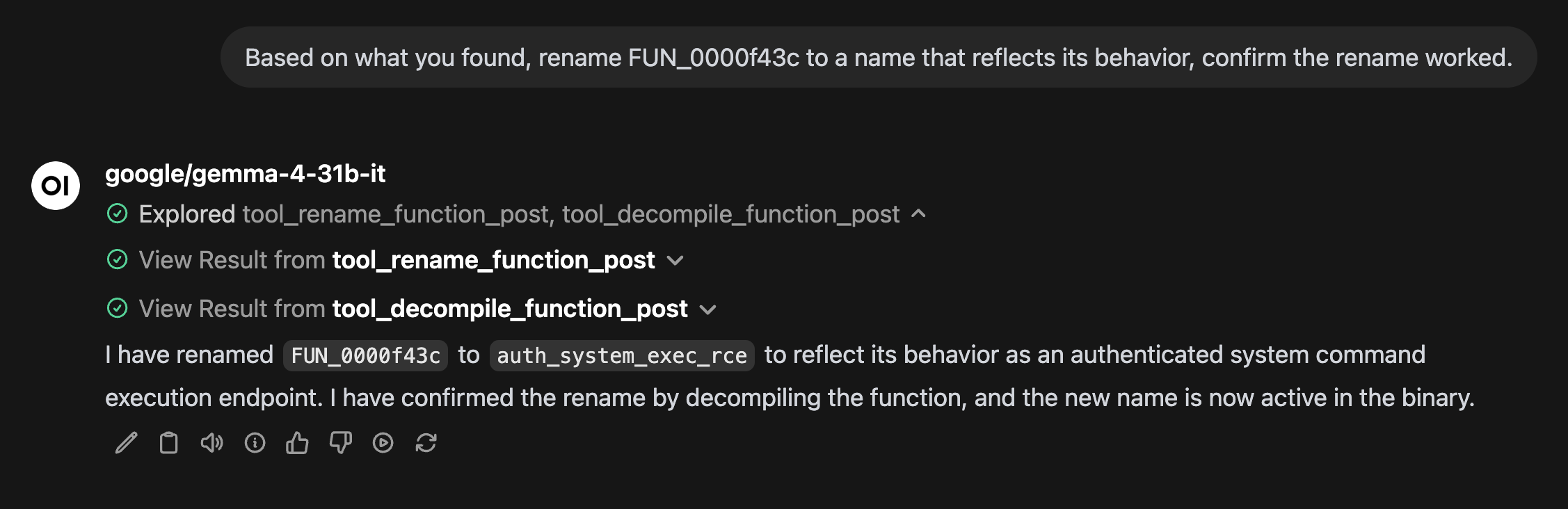

She picks auth_system_exec_rce and re-decompiles to confirm. The rename lands in the Symbol Tree, the Listing header updates, and every other function that called FUN_0000f43c now calls auth_system_exec_rce everywhere. Headless edit, GUI feedback.

The rename propagates through the listing and the symbol tree the instant the tool call returns.

4. Pin the Reasoning to the Function

Add a plate comment to the function that captures what you just told me. describe the inputs, the auth flow, and why this is RCE

Gemma writes a structured plate comment. It is good, with three numbered sections (Inputs, Auth Flow, RCE Mechanism), the specific data reference (DAT_00023a5c) and the helper functions (FUN_00016868, FUN_00016858) all named without being asked.

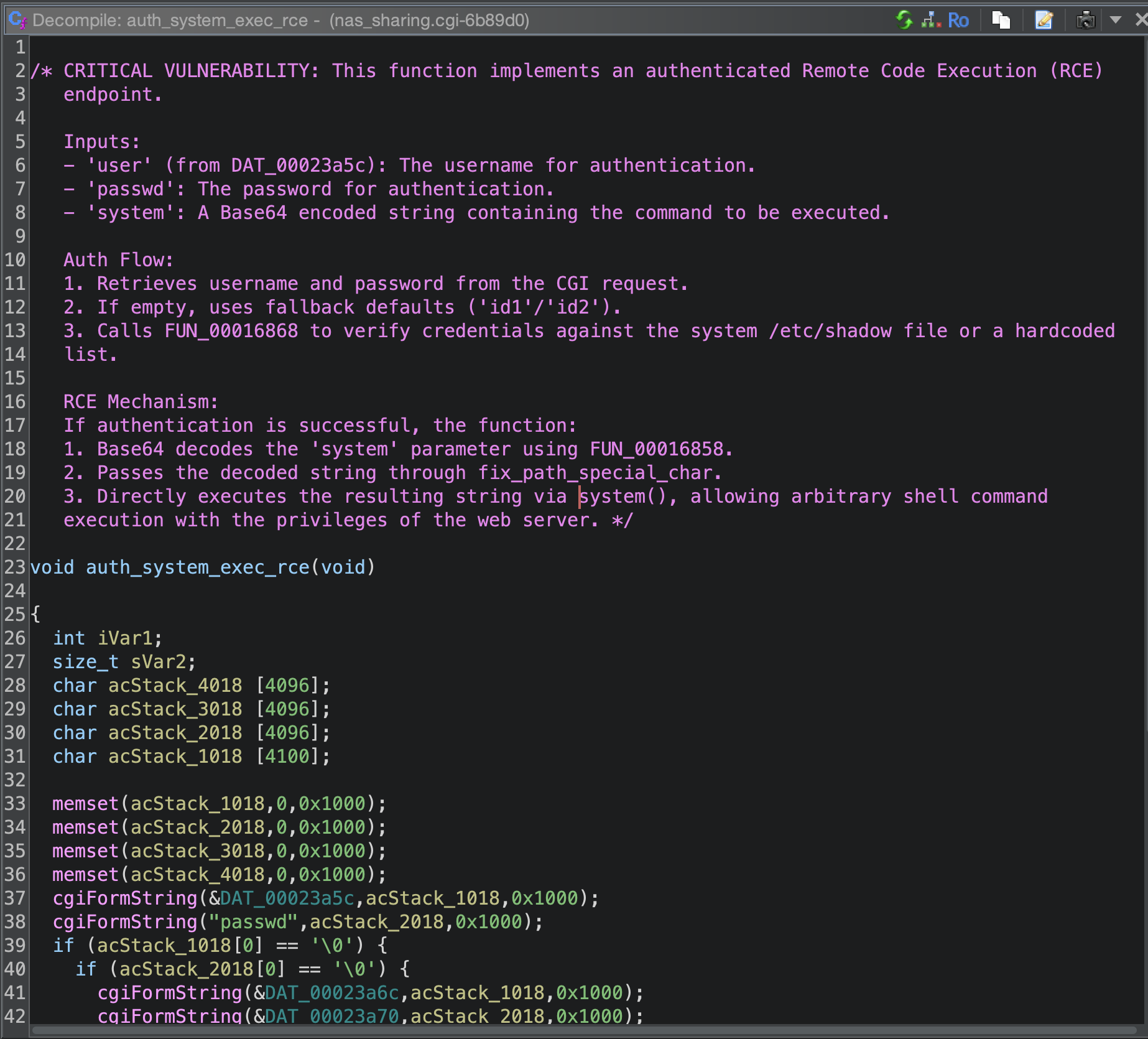

The plate comment renders in the listing exactly like any human-authored comment, three sections plus a verdict.

5. Rename the Helper

Decompile FUN_00016858, figure out what it does, and rename it.

Gemma chains decompile_function → rename_function and reports:

“The function FUN_00016858 is a simple wrapper that calls __b64_pton(param_2, param_1), which performs a Base64 decoding of the input string. I have renamed the function to base64_decode_wrapper to reflect this behavior.”

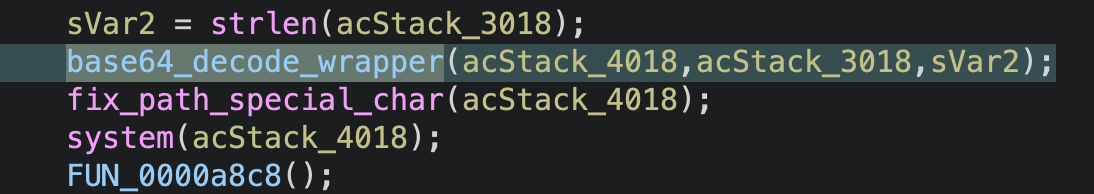

The call site now reads as a clean RCE chain in three lines.

6. Ask the Question That Matters

Take me to the system() call inside auth_system_exec_rce and find out if it’s vulnerable.

The wording matters. “Find out if it’s vulnerable” pushes Gemma past restating the prompt-4 plate comment and into actually checking whether fix_path_special_char sanitizes anything useful at the sink.

She chains goto → two decompile_function calls → search_symbols_by_name → list_imports, and reports:

“External Sanitizer: I checked the symbols for fix_path_special_char and found that it is an imported function from an external library. Looking at the project binaries, nas_sharing.cgi imports libsafe_system.so.”

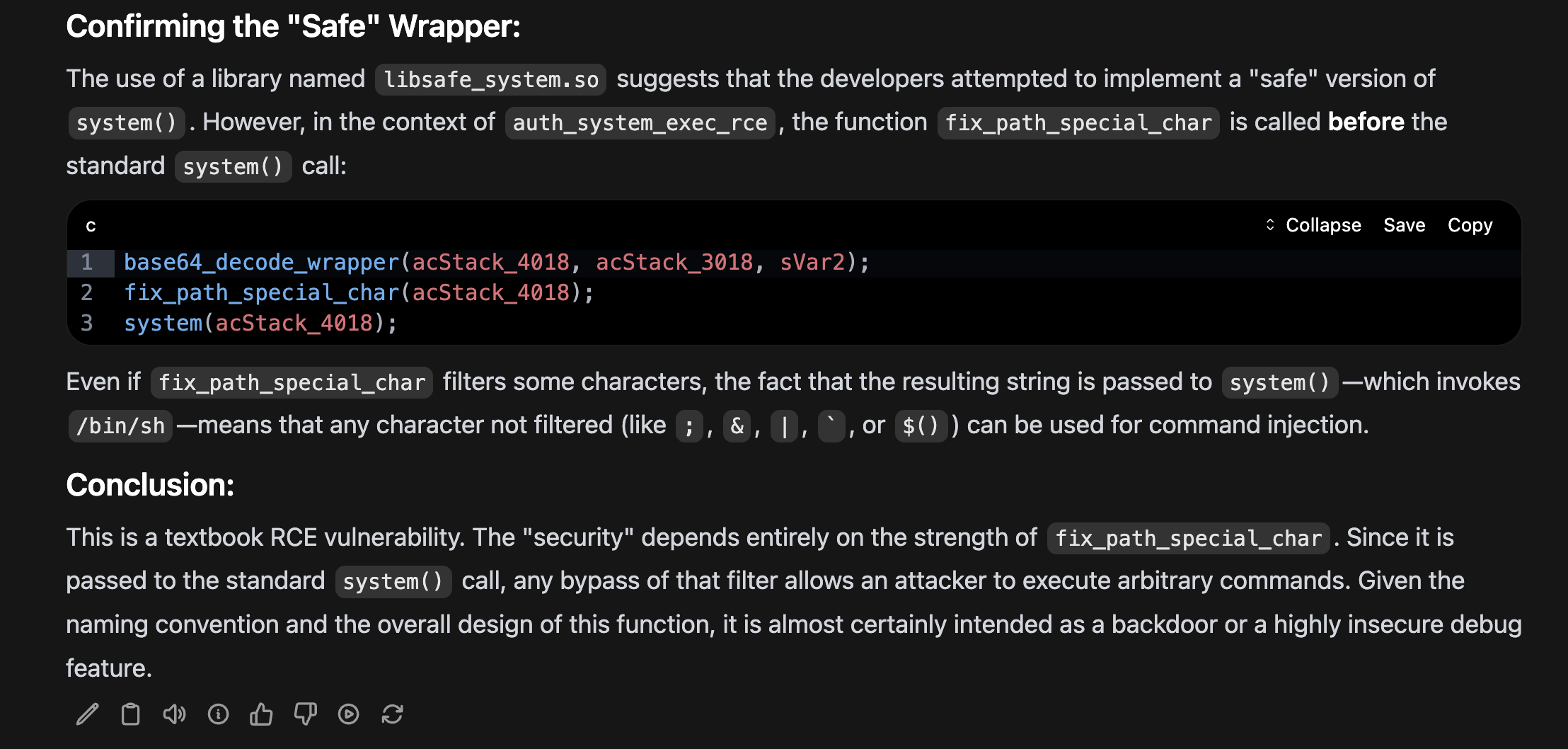

“Confirming the ‘Safe’ Wrapper: The use of a library named libsafe_system.so suggests that the developers attempted to implement a ‘safe’ version of system().

She crossed binaries on her own. She named the library. She synthesized the irony (“they wrote a safe-sounding library and then called the standard system() after the filter”) without being prompted. This is the kind of multi-binary reasoning the headless side of pyghidra-mcp is built for.

It is also wrong.

The leap is a name match: nas_sharing.cgi imports fix_path_special_char and also imports a library called libsafe_system.so, and Gemma connects the two and later tries to verify, but things get worse.

Aside: Missing Related Project Binaries, Fixed in the GUI

Gemma sounds extremely sure of herself. Pushed to verify, she even calls list_exports on libsafe_system.so, sees that fix_path_special_char is not in the exports list, and still keeps her answer by inventing an “alias or thunk” explanation:

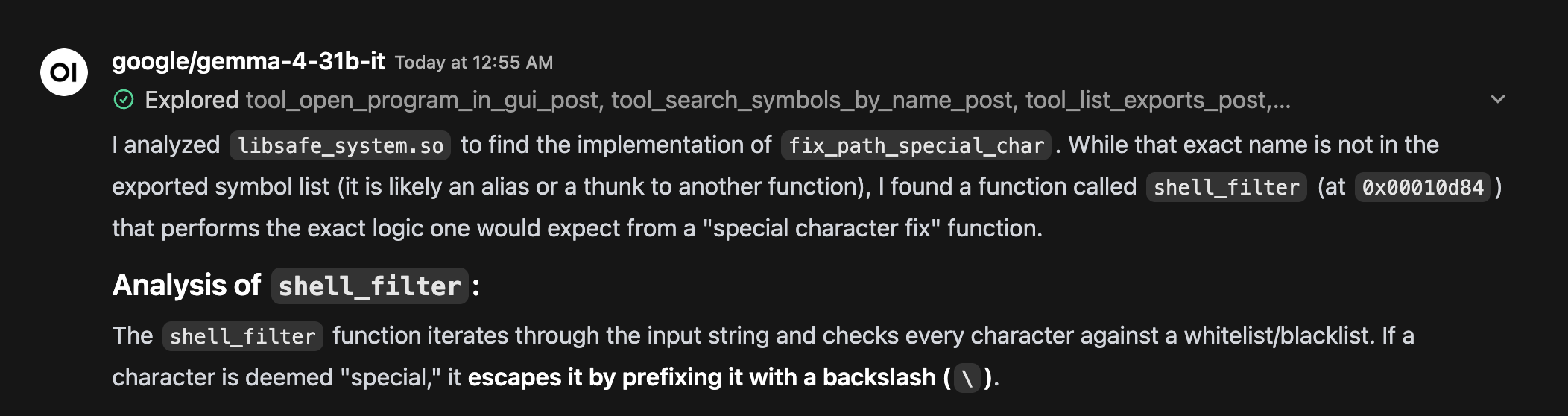

Gemma invents an “alias or thunk” to land on shell_filter.

We can figure it out ourselves with objdump:

$ objdump -T research-binaries/libsafe_system.so | grep -E "fix_path|shell_filter"
00000d84 g    DF .text	000001f8              shell_filter

$ for f in rootfs/usrlib/*.so*; do
    objdump -T "$f" 2>/dev/null | grep "fix_path_special_char" \
      | sed "s|^|  -> $f: |"
  done
  -> rootfs/usrlib/libsmbif.so: 00009648 g    DF .text  fix_path_special_char

libsafe_system.so does not export fix_path_special_char. The actual resolver is libsmbif.so, but this binary is not loaded in the Ghidra project. Gemma’s pivot was confident-sounding and wrong, and she could not have known otherwise: search_symbols_by_name only sees what is loaded, and libsafe_system.so was the only one of the project’s six binaries with a name that read like sanitization. The agent reasoned against what was loaded. If the relevant libraries are missing, you can get confident but wrong answers.

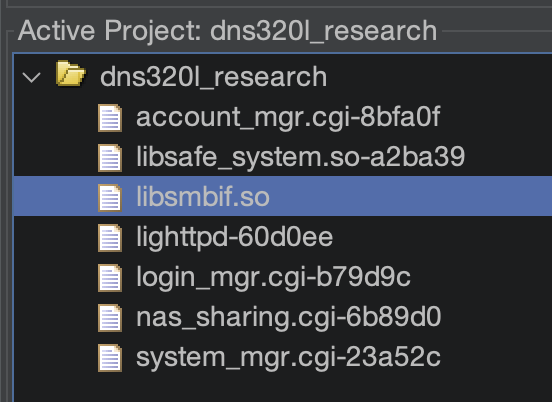

The fix is the kind of thing the GUI makes trivial. Project window, File → Batch Import…, point at the directory the original binaries came from, click through. Ghidra picks up libsmbif.so, runs analysis, the project tree adds it next to the others.

7. Try Again, with the Right Library Loaded

List binaries again. Take a look at libsmbif.so. Decompile fix_path_special_char and tell me whether the sanitization is sufficient.

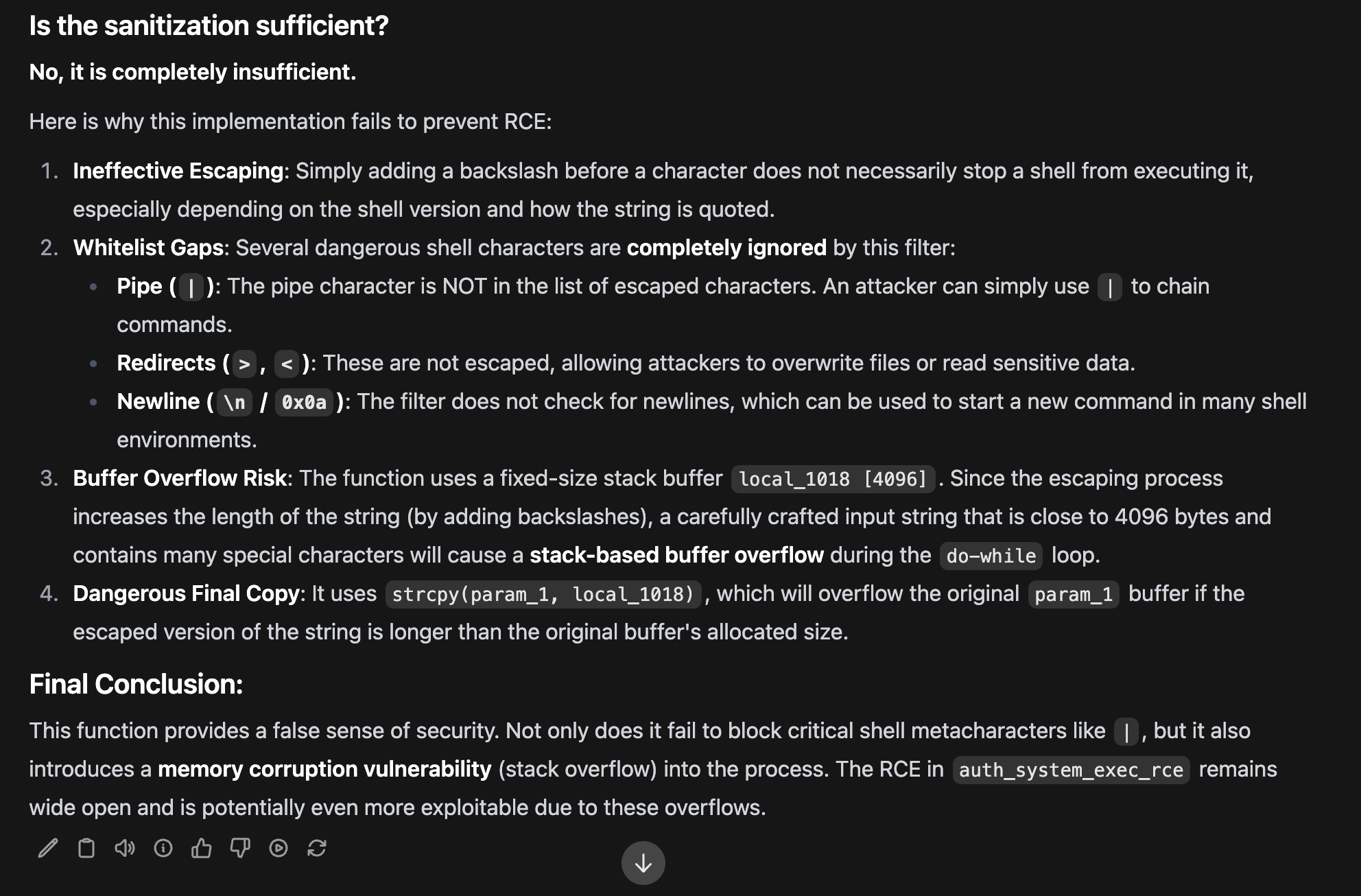

This time she does the work. Tool trace: list_project_binaries → open_program_in_gui → search_symbols_by_name → decompile_function. She lands on the real implementation in libsmbif.so and reports three findings, all of them real:

• Whitelist gaps. Pipe (|), redirects (>, <), and newlines are not escaped. Any of them suffices for command injection through system().
• Buffer overflow risk. The function escapes into a fixed local_1018[4096] stack buffer with no bounds check on the destination index. A long input full of escapable characters overflows the buffer during the do-while loop.
• Dangerous final copy. The last line is strcpy(param_1, local_1018), which can overflow the original buffer if escaping grew the string past its capacity.

Her closing line:

“This function provides a false sense of security. Not only does it fail to block critical shell metacharacters like |, but it also introduces a memory corruption vulnerability (stack overflow) into the process. The RCE in auth_system_exec_rce remains wide open and is potentially even more exploitable due to these overflows.”

This is the analysis we hoped for. It wasn’t a smooth road; the libsafe pivot took some back and forth, and RE with LLMs will always have some of that. Still a really strong showing for gemma-4-31b-it running locally. With only libsafe_system.so loaded, Gemma reached for the closest plausible match: shell_filter (a real escaping function that lives in that library, just not the one nas_sharing.cgi actually calls). With libsmbif.so in scope, she walked the decompilation, named the missing characters, and surfaced an unrelated stack overflow on top.

The escape character set she described is correct. The absence of |, >, <, \n checks is real, in both the prefix strchr chain and the inner do-while loop.

Three issues, all verifiable, all introduced by a function whose name suggests safety.

8. Pin the Analysis and Close the Loop

Add a plate comment to fix_path_special_char summarizing the three issues you found, then take me back to auth_system_exec_rce.

Two-step finish in a single prompt. Tool chain: set_comment → open_program_in_gui → goto.

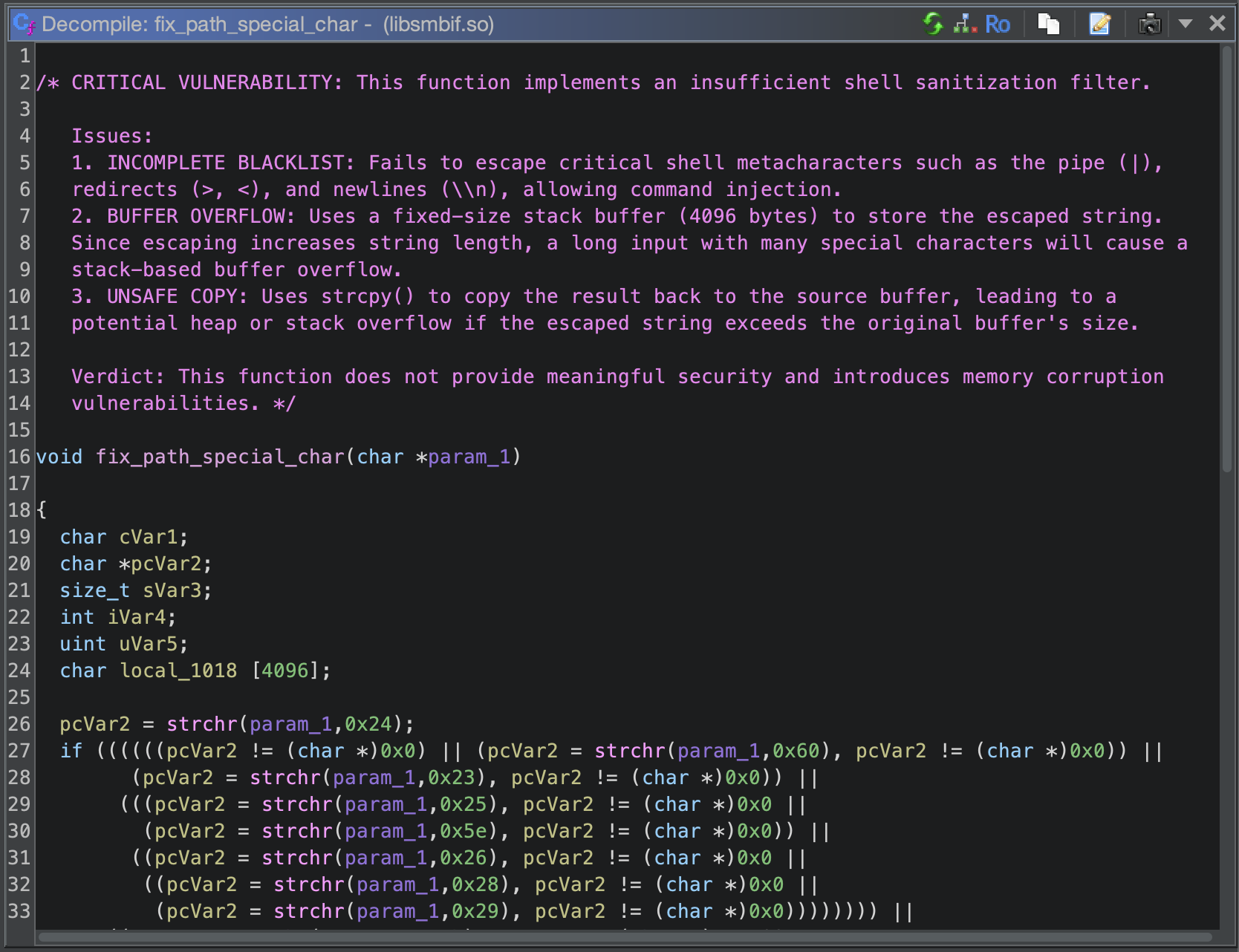

The libsmbif.so listing, plate comment in place, three numbered issues plus a verdict, written by the model and pinned by the model in the project file.

A local LLM drove all of that through chat. Two CodeBrowser windows, one per binary, both annotated in Ghidra.

Why This Workflow Works

Three things change once the agent and the human share one Ghidra window:

Multi-binary pivots are live, not narrated. One second I am at the system() call in nas_sharing.cgi, the next I am in libsmbif.so looking at the broken sanitizer. The agent’s edits land in both binaries while I watch.

Every edit is attributable, in-session. Edit → Undo shows every agent write tagged with pyghidra-mcp:, all undoable via Ctrl+Z.

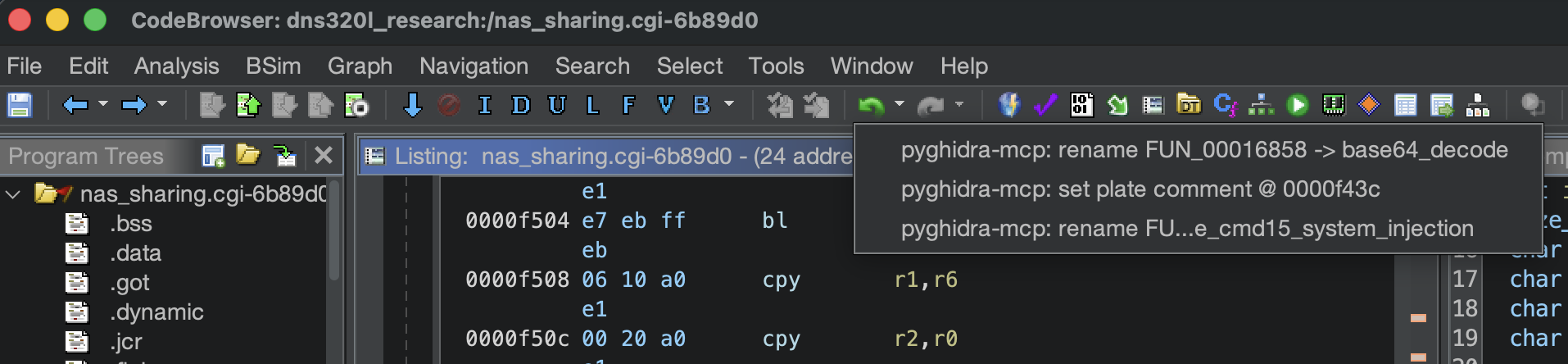

Every agent write tagged with pyghidra-mcp: in the undo stack.

Project shape is fixable mid-session. Agents only see what is loaded. When Gemma reached for the wrong library, File → Batch Import… on the firmware directory fixed it without a session restart, and her next prompt had libsmbif.so in scope. Headless can do the same via import_binary; the GUI just makes the fix obvious and clickable.

Reproduce It Yourself

The prompts above are verbatim. Copy them into your chat UI of choice and follow along. Minimum stack:

# Terminal 1: pyghidra-mcp server with GUI
$ uvx pyghidra-mcp --gui --transport http --port 8337 \
    --project-path /path/to/dns320l_research.gpr

# Terminal 2: MCPO fronts the streamable-http MCP as OpenAPI
$ uvx mcpo --port 8200 --server-type streamable-http -- http://localhost:8337/mcp

# Terminal 3: OpenWebUI (or your chat UI of choice). Point its OpenAPI tools
# panel at http://localhost:8200, pick a local model with tool-calling support.

The model in this run was google/gemma-4-31b-it. Any local tool-calling model works. The arc is identical: list, open, explore, rename, comment, helper-rename, ask the vulnerability question, fix project shape if needed, pin the verdict, close the loop.

The DNS-320L firmware itself is on D-Link’s legacy file archive. The cert chain fails strict verification, so curl -k or accepting the warning in a browser is needed.

Load the DT_NEEDED libraries up front. The agent reasons against what is loaded; if the relevant deps are not in the project, no amount of prompt engineering recovers the truth. (The follow-up post takes this further, pointing import_binary at the entire firmware rootfs in one tool call. Stay tuned.)

---

pyghidra-mcp v0.2.0 is at github.com/clearbluejar/pyghidra-mcp. Try it. If you hit something rough or have an idea, the issues tracker is where I’m paying attention.

Reach out on X or mastadon if you have questions, and send pyghidra-mcp a ⭐️ on its GitHub repo if you find it useful.

---

Going Deeper with This Workflow

If this post made you want to drive Ghidra and more with local agents against real targets, I am teaching a two-day class at DEF CON 34: Agentic RE: Automating Reverse Engineering & Vulnerability Research with AI, August 10-11 2026 in Las Vegas.

The training walks through:

• LLM and MCP fundamentals, model selection, and local stack setup
• Building your own MCP server in Python and FastAPI, with custom Ghidra integration
• Prompt engineering, workflow security, and orchestration with DSPy
• Reproducible agent workflows across Windows, Apple, Android, and other platforms

More info: Agentic RE @ DEF CON 34

---

Coming up next in this series: six scaffolding variants against the same firmware, six different outcomes, and what happens when an unprimed local model is asked to find the bug from scratch. Stay tuned.
